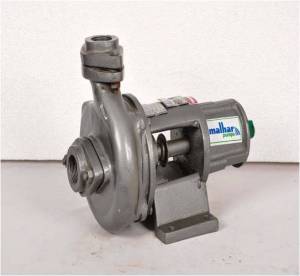

MONOBLOCK WATER PUMPS MMP
MONOBLOCK WATER PUMPS MMP Details
CENTRIFUGAL PUMPS “MMP” SERIES
FEATURES
• Can withstand wide voltage fluctuation – from 300-440 volts.
• Suction lift up to 7.5 meters.
• Top flat efficiency curve : minimum variation in efficiency in entire operating range
• Efficiency at par with internationally available pumps – higher up to 10 points than minimum required by Indian standards specification
• Models are with IP – 44 protection. Models with IP – 55 protection are also available on request
• Class of insulation ‘B’ ( ‘F’ Class for 9.3 kw and 11.0 Kw ratings).
• Designed to prevent overloading and motor burning
• Dynamically balanced rotating parts ensure minimum vibrations
• Replaceable wearing parts and hence longer life
• Designed for automatic air release during priming
• Continuous rated motor
• Inside and outside of pump covered by anticorrosive paint
APPLICATIONS
• Irrigation.
• Industries for clear water handling
• Water supply for domestic use in apartments, Buildings and hotels.
• MMP Series Three Phase Pumps : Single stage, High speed horizontal, Centrifugal , Monobloc with volute type delivery casing
MATERIAL OF CONSTRUCTION STANDARD SUPPLY
Impeller : Cast iron
Delivery casing : Cast iron
Motor body : Cast iron
Shaft : EN -8
Shaft Sleeve : SS-410
RANGE
Head : Up to 90 meters
Capacity : 19.0-2.0 liters per second
Power rating : Up to 30 hp
OPTIONAL SUPPLY
Impeller : Bronze / Stainless Steel
Shaft : Stainless steel
Shaft Sleeve : Chrome Steel
| Approximate performance of MMP Series, 2 pole, Monobloc pumps, rated voltage, 50 Hz , Three phase A.C. power supply | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PUMP MODEL | POWER RATING | PIPE SIZE ( mm ) | TOTAL HEAD IN METER | |||||||||||||||||
| 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32 | 34 | 36 | |||||
| KW | HP | SUC | DEL. | CAPACITY IN LITERES PER SECOND | ||||||||||||||||
| MMP-0515 | 0.37 | 0.5 | 25 | 25 | 2.0 | 1.9 | 1.8 | 1.0 | 0.2 | |||||||||||
| MMP-130 | 0.75 | 1.0 | 25 | 25 | 2.7 | 2.3 | 2.1 | 1.8 | 1.3 | 0.9 | 0.7 | 0.4 | 0.0 | |||||||
| MMP-115 | 0.75 | 1.0 | 40 | 40 | 5.4 | 4.7 | 3.8 | 1.7 | 1.5 | |||||||||||
| MMP-224 | 1.5 | 2.0 | 50 | 50 | 5.8 | 5.3 | 5.0 | 4.7 | 3.5 | 3.0 | 2.5 | 2.0 | 1.2 | |||||||
| MMP-325 | 2.2 | 3.0 | 65 | 50 | 9.2 | 8.8 | 8.4 | 7.9 | 7.4 | 7.0 | 6.4 | 5.8 | 4.9 | |||||||
| MMP-335 | 2.2 | 3.0 | 50 | 40 | 5.0 | 4.9 | 4.8 | 4.7 | 4.6 | 4.4 | 4.2 | 4.0 | 3.8 | 3.6 | 3.2 | 2.7 | 2.0 | |||
| MMP-515 | 3.7 | 5.0 | 100 | 100 | 32.8 | 31 | 28.0 | 24.2 | 19.0 | 12.8 | ||||||||||
| MMP-520 | 3.7 | 5.0 | 80 | 80 | 23.5 | 22.8 | 21.9 | 20.8 | 19.4 | 17.7 | 15.9 | 13.9 | 10.8 | |||||||
| MMP-527 | 3.7 | 5.0 | 80 | 65 | 14.2 | 13.4 | 12.6 | 11.6 | 10.3 | 8.7 | 5.8 | |||||||||
| MMP-538 | 3.7 | 5.0 | 65 | 50 | 8.5 | 8.4 | 8.3 | 8.1 | 7.8 | 7.6 | 7.1 | 6.5 | 5.8 | |||||||
| MMP-822 | 5.5 | 7.5 | 100 | 100 | 27.1 | 25.5 | 23.9 | 22.0 | 20.0 | 17.5 | 14.2 | |||||||||
| MMP-830 | 5.5 | 7.5 | 80 | 65 | 19.0 | 18.2 | 17.3 | 16.4 | 15.4 | 14.2 | 13.0 | 11.1 | ||||||||
| MMP-837 | 5.5 | 7.5 | 65 | 65 | 12.6 | 12.4 | 12.1 | 11.8 | 11.3 | 10.0 | 9.2 | |||||||||
| MMP-1030 | 7.5 | 10.0 | 100 | 100 | 31.9 | 30.7 | 29.4 | 28 | 26.5 | 25 | 23.3 | 21.2 | 17.5 | |||||||
| MMP-1331 | 9.3 | 12.5 | 100 | 100 | 33.3 | 32 | 30 | 28.5 | 26 | 23.3 | 19.5 | 13 | ||||||||
| MMP-1537 | 11 | 15.0 | 100 | 100 | 36.7 | 35.8 | 34.1 | 33.3 | 32 | 30 | 27.6 | 25 | 20 | 17.5 | ||||||
| PUMP MODEL | POWER RATING | PIPE SIZE ( mm ) | TOTAL HEAD IN METER | |||||||||||||||||
| 28 | 32 | 36 | 40 | 44 | 48 | 52 | 55 | 60 | 64 | 68 | 72 | 76 | 80 | 90 | 94 | |||||
| KW | HP | SUC. | DEL | CAPACITY IN LITERES PER SECOND | ||||||||||||||||
| MMP-550 | 3.7 | 5.0 | 50 | 40 | 4.1 | 3.9 | 3.7 | 2.7 | 2.0 | |||||||||||
| MMP-852 | 5.5 | 7.5 | 65 | 50 | 8.6 | 8.1 | 7.5 | 6.8 | 5.9 | 4.5 | 3.5 | |||||||||
| MMP-1040 | 7.5 | 10.0 | 80 | 65 | 17.8 | 15.9 | 13.3 | 9.5 | 18 M HEAD AT 20 LPS | |||||||||||
| MMP-1065 | 7.5 | 10.0 | 65 | 50 | 7.5 | 7.1 | 6.8 | 6.4 | 6.0 | 5.3 | 4.3 | 3.0 | ||||||||
| MMP-1348 | 9.3 | 12.5 | 80 | 65 | 17.9 | 17.0 | 16.0 | 14.8 | 11.6 | 20 M HEAD AT 19 LPS | ||||||||||
| MMP-1372 | 9.3 | 12.5 | 65 | 50 | 8.0 | 7.9 | 7.8 | 7.6 | 7.2 | 6.2 | 5.6 | 3.0 | ||||||||
| MMP-1555 | 11.0 | 15.0 | 80 | 65 | 19.2 | 18.3 | 17.3 | 15.8 | 14.6 | 11.0 | 9.7 | |||||||||
| MMP-1575 | 11.0 | 15.0 | 65 | 50 | 8.3 | 8.0 | 7.8 | 7.4 | 7.0 | 6.5 | 5.8 | 4.5 | ||||||||
