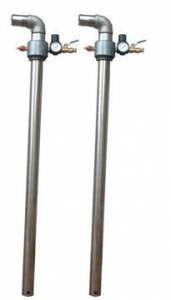

PNEUMATIC OPERATED RECIPROCATING TYPE BARREL PUMPS

Call Now
+91- 814XXXX903
WhatsApp
+91- 814XXXX903
AvailabilityIn Stock
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

PNEUMATIC OPERATED RECIPROCATING TYPE BARREL PUMPS Details

“Creative Engineers” Barrel pumps works in reciprocating action.

Barrel pump is useful for safe and efficient handling of highly corrosive chemicals, solvents, acids, petroleum products diesel oil ,and fuel oils , plating solution , toxic chemicals etc.

It Eliminates danger of spillage explosion hazards.

Construction of MALHAR Pump is such that operating compressed air never gets in contact with pumped liquid.

The pump can be directly inserted in to the barrel threading provide on the pump adopter. It sucks the liquid from the bottom and hence less chances of leftover material. It does not have any type of motor and hence virtually zero maintenance, Contact pulsation dampener supplier, pulsation dampener manufacturer today.

FEATURES

  • our pump is operates on compressed air of 4 to 6 Kg/Cm².
  • Adjustable flow rate.
  • Self-priming
  • Easy to lubricate.
  • Easy to maintain
  • Light weight.

Technical Data

Capacity 40 Lpm.
Head 15 Mtrs.
Operating Pressure 3 to 6 kg/cm²
Material of construction S.S.304 / 316
Discharge 1 Inch
Temperature 120° C

STAINLESS-STEEL PNEUMATIC OPERATED FORCE TYPE BARREL PUMPS

Stainless Steel Pneumatic Transfer Pump for Food Syrups, Ketchup, Flammable Media, Chemicals, Paint, Liquid Media with Fillers, Fuel

Flow rate – 70 liter per minute

MOC – SS304

Inlet diameter – 40 mm

Outlet diameter – 25 mm

Air Hose diameter – 8 mm

Safety Valve Pressure – 0.03 Mpa

Air Pressure > 0.1 MPa

Length of the Pump – 1.12 meter

Length of the Tube – 1 meter

Head – 4 meter

Weight – 6 kg

Filter Gauge supplied as free accessories

CODE591651
TypeQTQ
ApplicationSuction & Discharge Suction
SuckingPerformancePressure ofCompressed Air4 kgf/cm2
Vacuum Degree4,800mm/H2O
Recovery TimeFor 100 ltrClean Water60 sec
DischargingPerformanceDischarge Pressure0.7 kgf/cm2
Recovery TimeFor 100 ltrClean Water80 sec
Hoseφ32mm *3M
Suction & Discharge Suction300 mm
