Single Stage Pump (ISL) Exporter Cape Town, South Africa

We are supplying single-stage ISL-type pumps manufactured for clean water circulation, process fluid transport, and light chemical movement across mid-range flow environments. Built with end-suction, inline mounting configuration, these pumps are exported to South Africa’s utility zones, serving both HVAC and industrial systems in Cape Town and Durban.

These pumps are actively operating across wide geographical and commercial footprints:

• South Africa – Building services, mall cooling loops, public water booster sets
• UAE & Oman – Chilled water movement in high-rise towers
• India & Bangladesh – Dye house water feeds and process rinse cycles
• West Africa – Borewell discharge systems and tannery lines
• Shipyards & Logistic Parks – Equipment coolant circulation and tank-to-tank transfer

Their single impeller design is suited for smooth, low-pulsation flow.

Facilities Benefiting from These Pump Units

• Chemical packaging plants using glycol and brine circulation
• Water purification stations in civic zones
• Cold chain warehouses managing fluid transport
• Public infrastructure works requiring standby booster circuits
• Hotels and commercial buildings operating vertical riser lines
• Food processing clusters where clean-in-place fluids circulate

Each use case demands non-clogging, vibration-free, and leak-tight delivery.

Seal Configuration

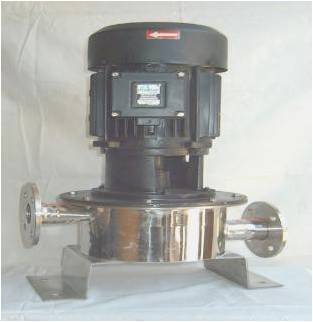

The ISL single-stage pump features precision-balanced impellers, a closed casing format, and long-life mechanical seals. Inline mounting saves floor space, while flanged ends enable easy connection to pipe headers. Bearing housing and motor shaft are fully protected. Optional add-ons include thermocouple slots, vibration sensors, and drain valves.

Operating Range

• Flow Rate: 2 m³/hr to 180 m³/hr
• Head: Up to 35 meters
• Pump Material: Cast Iron / SS304 / Bronze (optional)
• Seal Type: Mechanical seal (carbon/ceramic or silicon carbide)
• Motor Power: 0.75 kW to 22 kW
• Mounting: Inline horizontal foot-mounted
• Flange Standard: DIN or ANSI compatible
• Operating Temp.: 5°C to 85°C liquid temp range

Each unit is hydro-tested before shipment and packed with alignment locks.
